Lithium-ion Series  High Performance
ABT BV is one of the best suppliers for China’s telecommunication business and is accumulating large-scale project experience world-wide. ABT BV provides Advanced BACKUP lithium-ion battery which is the core device of the future power business through world’s best manufacturing facilities and technology.


Local here: Home / Product / Lithium-ion Series / Specifications
  Metric English Metric Lithium-ion Series General Specifications
PDF Item
Type
Rated
Voltage
(V)
Rated
Capacity
(Ah)
Charge Size(mm) Weight
(kg)
Working Storage
Temp(°C)
Max
IR(mΩ)
Charge
Voltage
Charge
Mode
W D H Temp
(°C)
SSIFP15S4810A 48 10 54.6 CC/CV 442 260 44 7.9 -20~60 -20~65 <45
SSIFP15S4820A 48 20 54.6 CC/CV 442 260 88 15 -20~60 -20~65 <25
SSIFP15S4830A 48 30 54.6 CC/CV 442 260 155 21 -20~60 -20~65 <25
SSIFP15S4840A 48 40 54.6 CC/CV 442 400 132 28 -20~60 -20~65 <25
SSIFP15S4850A 48 50 54.6 CC/CV 442 410 132 29.2 -20~60 -20~65 <20
SSIFP15S4870A 48 80 54.6 CC/CV 430 254 254 45 -20~60 -20~65 <30
SSIFP15S48100A 48 100 54.6 CC/CV 442 410 265 59.4 -20~60 -20~65 <10
SSIFP15S48150A 48 150 54.6 CC/CV 442 410 396 87.6 -20~60 -20~65 <7
SSIFP15S48200A 48 200 54.6 CC/CV 442 410 530 116.8 -20~60 -20~65 <5

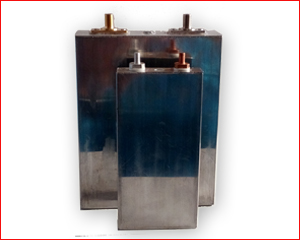

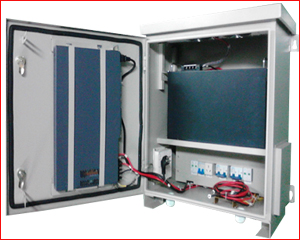

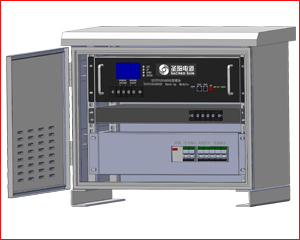

Eelectric core& Integrated cabinet

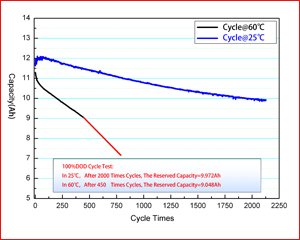

High Efficiency/Long Cycle Life
